Acoustic Ceiling Detail

What is an acoustic ceiling?

An acoustic ceiling is a ceiling system or ceiling detail designed to help control sound within a room or building.

Depending on the design and specification, acoustic ceilings can help reduce echo, improve speech clarity, support acoustic separation between floors or spaces and improve overall comfort for building occupants.

Details in acoustic ceilings vary widely. Some use specialist acoustic tiles or panels within a suspended grid. Others use plasterboard-based build-ups with acoustic board, resilient bars, isolation hangers and air gaps. Many projects combine both approaches depending on the acoustic performance required and the ceiling type specified.

Innovate at SA works specifically with the plasterboard and board-based components used within acoustic ceiling details.

We prepare those components offsite so your site team receives clean, labelled, install-ready pieces.

Acoustic ceiling detail: board components and preparation

An acoustic ceiling detail is only as good as the way it is planned, prepared and installed.

The plasterboard and board-based elements often sit around the parts of the ceiling that are hardest to manage on site. Margins, baffles, service openings, bulkheads, coffers, lighting troughs and access panel surrounds all need accurate cutting and consistent preparation.

When these components are cut on site, the work can become slow and repetitive. Operatives have to measure, mark, cut, check and sort each part while working around other trades, programme pressure and limited working space.

Preparing the components offsite gives the site team a cleaner starting point.

At Innovate at SA, contractors send us the board, drawings, cutting schedule or ceiling detail. We review the requirement, confirm the practical cutting and forming approach, nest the material for efficient board use, then CNC cut, form, label and pack the components by floor, zone, area or drawing reference.

This does not replace the project specification or the need to install the ceiling correctly.

It helps remove avoidable cutting, dust, waste and preparation from site so the installation team can focus on fitting the specified detail.

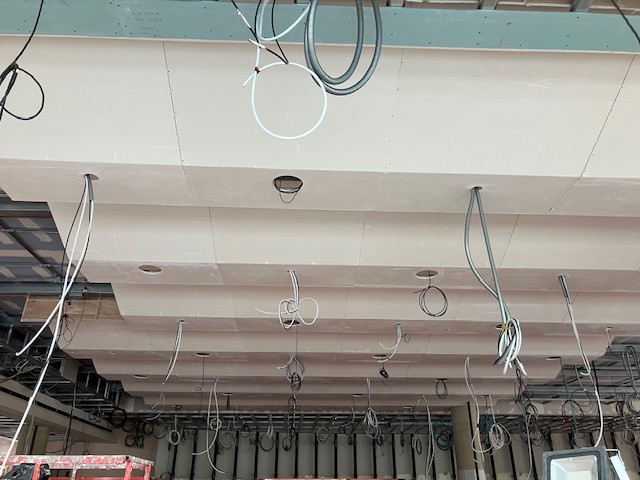

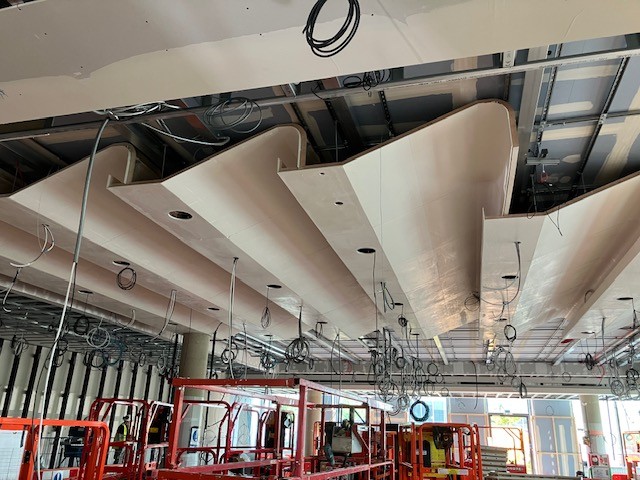

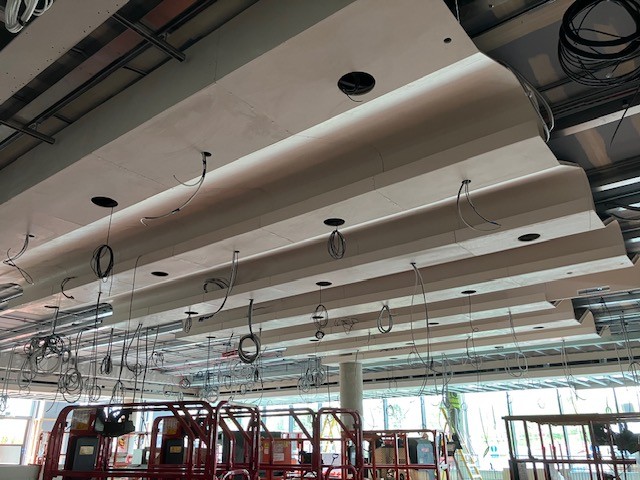

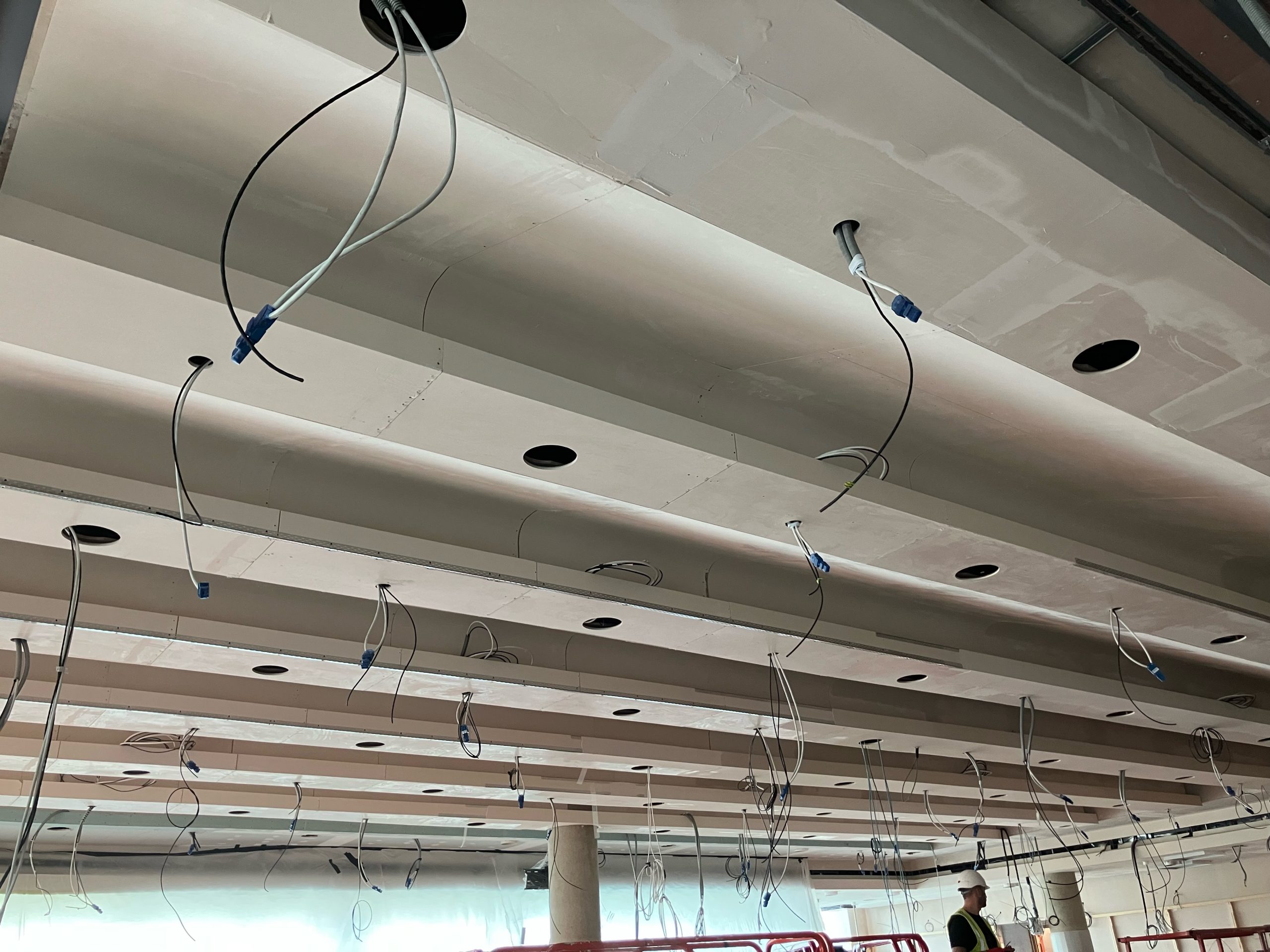

We have worked on acoustic ceiling cassettes for auditorium and performance spaces across the UK. Read more about acoustic ceiling cassettes for auditorium and performance spaces.

What information helps us prepare acoustic ceiling components

To prepare acoustic ceiling components offsite, we usually need:

Board type and thickness
Drawings or DWG files
Cutting schedule or dimensions
Quantities
Ceiling zones, floors or room references
Service opening sizes
Access panel details
Bulkhead or coffer profiles
Labelling requirements
Delivery or collection requirements
Programme dates

For more complex details, we can review the drawing and confirm whether templates, modelling or sample components would help before full production.

The earlier this information is reviewed, the easier it is to remove site cutting and preparation from the programme.

Acoustic performance depends on the full ceiling system

Acoustic performance is not created by one component alone.

It depends on the full ceiling build-up, the board type, framing, hangers, insulation, air gaps, seals, junctions, service penetrations and installation quality.

Innovate at SA does not replace the acoustic consultant, system manufacturer or project specification. Our role is to prepare the board-based components accurately so they can be installed as part of the specified detail.

By cutting and forming components offsite, we help improve consistency around repeated details such as baffles, margins, service openings, bulkheads and ceiling features.

That consistency matters where acoustic ceiling details repeat across rooms, corridors, auditoriums, education spaces, hospitality areas or commercial interiors.

Why acoustic ceiling preparation matters

Acoustic ceiling work is rarely straightforward on site. Most details involve more than flat sheets. By the time you factor in margins, coffers, bulkheads, baffles, service openings, boxed sections and repeat perimeter details, the preparation work adds up fast.

On site, that means:

Repeated cutting of similar or identical components
Tight margins with little room for error
Service openings that need to be marked and cut accurately
Boxed sections and bulkheads that take time to form
Baffles and feature ceiling zones that require consistent sizing
Dust and waste accumulating across the floor
Slow preparation pulling skilled labour away from installation
Inconsistent cutting when the same component is cut multiple times by different operatives

Moving acoustic ceiling preparation offsite addresses most of this directly. Components arrive labelled, sequenced and ready to install. Cutting on site is reduced. Waste is reduced. Skilled site labour is freed up to focus on installation rather than repetitive board prep.

How it works

1. Send us your drawings, cutting schedule or site requirement
A drawing, a cutting schedule or a description of the ceiling detail is enough to get started. We do not need a formal enquiry pack.

2. Tell us what board you are supplying and when components are needed
Let us know the board type, thickness, quantities and your programme. We will confirm whether we can work with the board and what the lead time looks like.

3. We review the detail and confirm what can be moved offsite
We check sizes, quantities, sequencing and any labelling requirements before production starts. If anything needs clarifying, we come back to you before we cut.

4. We CNC cut, form, label and prepare the components at our workshop
At our Elsenham facility in Essex, we precision cut, form, label and stack the components. Each package is prepared so your site team knows what goes where.

5. Components are packed for collection or delivered to site ready for installation
Components can be collected from our workshop or delivered to site. Packed and labelled by floor, zone or installation sequence.

Why contractors use us for acoustic ceiling components

You keep your board supplier, your merchant rates and your rebates. We just cut, form, label and prepare the components.

FAQ's Acoustic ceiling detail

What is an acoustic ceiling detail?

An acoustic ceiling detail is the specified build-up or construction arrangement used to help control sound within a space or between spaces. It may include board layers, framing, hangers, insulation, air gaps, seals, baffles, bulkheads, margins or service opening details.

Does Innovate at SA install acoustic ceilings?

No. Innovate at SA does not install full acoustic ceiling systems. We prepare the plasterboard and board-based components used within the specified ceiling detail so they arrive ready for the site team to install.

Can acoustic ceiling components be prepared offsite?

Yes. Board-based acoustic ceiling components can be cut, formed, labelled and packed offsite. This can include baffle boxes, ceiling margins, bulkhead parts, coffer details, access panel surrounds, service opening components and bespoke ceiling features.

Do contractors send their own board?

Yes. Contractors can send us their own specified board. They keep control of the supplier, board type, merchant rates and rebates. We provide the offsite cutting, forming, labelling and preparation.

Can you work from drawings or DWG files?

Yes. We can work from drawings, DWG files, dimensions, cutting schedules or repeat-size schedules. For more complex details, we can review the requirement and confirm what can be moved offsite before production.

Does offsite preparation guarantee acoustic performance?

No. Acoustic performance depends on the full specified system and correct installation. Offsite preparation helps improve consistency of the board-based components, but the ceiling still needs to be built in line with the project specification.
